| 材料: | 炭素鋼 | エンジン型式: | F1A / SOFIM 先進のターボチャージャー付きディーゼルエンジン |
|---|---|---|---|
| 燃料の種類: | ディーゼル | 変位: | 2.0L～3.0L |
| 排出基準: | ユーロ5/ユーロ6準拠 | 伝染 ; 感染: | マニュアル 5/6 スピード (オートマチックはオプション) |
| ブレーキシステム: | ABS付き4輪ディスクブレーキ | 酸素シリンダー: | 10L高圧 2台 |
| パワーインバータ: | 500w純粋な正弦波 | 電力ソケット: | 220V 4台 |
| ストレッチャー素材: | 高強度アルミニウム | ||
| ハイライト: | オートマティック・ストレッチャー付きのIV-ECO救急車,患者移送救急車,プライムムーバー トラック 医療輸送車 |
||

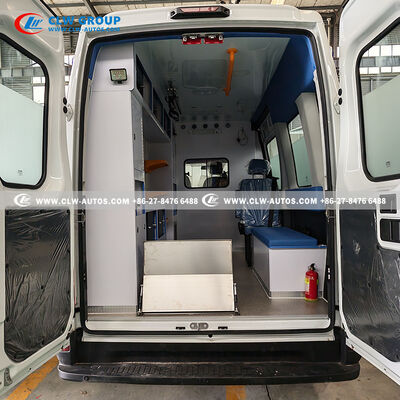

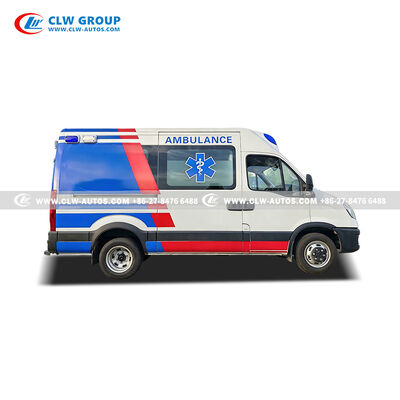

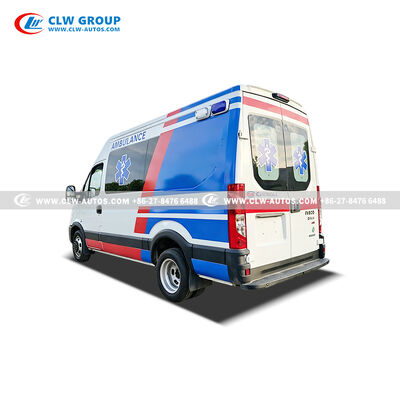

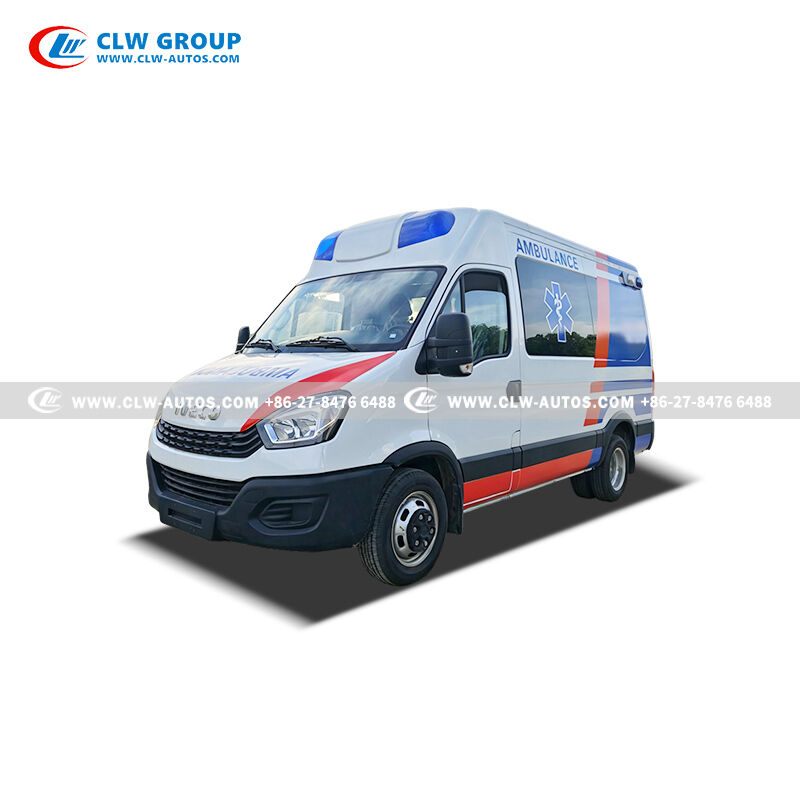

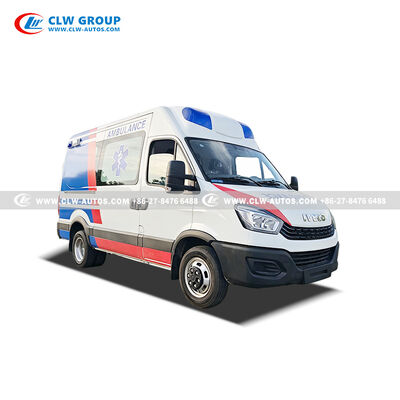

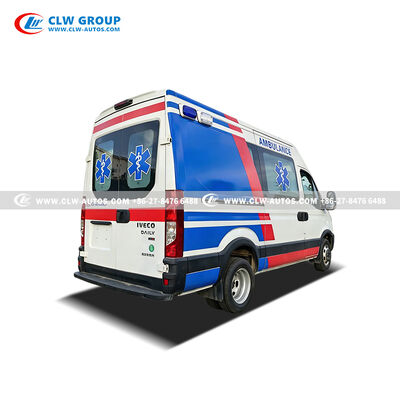

IVE-CO Patient Transfer Ambulance Transport Type Emergency Vehicle
IVE-CO Advanced Mobile Clinic Ambulance - Fully Equipped Transport Type Emergency Vehicle
Engineered by CLW GROUP, this premium IV-ECO Transport-Type Ambulance combines professional medical configuration with high-performance mobility. It delivers a safe, hygienic, and highly responsive environment for medical transit and urgent patient transfers.Key Product Highlights
Integrated Power & Control System
Technical Specifications
Category
Item
Detailed Specifications
Vehicle Overview
Manufacturer
CLW GROUP
Drive Type
4x2 Rear-Wheel Drive (4x4 optional for off-road demands)
Overall Dimensions
Approx. 5670 × 2011 × 2740 mm (Subject to final layout)
Gross Vehicle Weight (GVW)
4,000 kg
Seating Capacity
7-8 seats (Flexible medical crew layout + patient bed area)
Chassis & Engine
Chassis Brand
IVEC-O High-Rigidity Special Chassis
Engine Model
F1A / SOFIM Advanced Turbocharged Diesel Engine
Fuel Type / Displacement
Diesel / 2.0L - 3.0L High-Efficiency Turbo
Emission Standard
Euro 5 / Euro 6 Compliant (Tailored to destination country)
Transmission
Manual 5/6-Speed (Smooth Automatic Transmission optional)
Oxygen Supply System
Oxygen Cylinders
2 units of 10L high-pressure medical oxygen cylinders
Pressure Valves
Equipped with premium dual-gauge pressure reducing valves
Cylinder Cabinet
Dedicated secure oxygen cylinder cabinet on front right side
Power & Control
Power Inverter
1 unit of 500W pure sine wave inverter for medical devices
Power Sockets
4 units of 220V standard medical-grade power sockets
Central Control Panel
Integrated cabin electrical switchboard with safety indicators
Patient Transit
Stretcher System
1 automatic loading stretcher built from high-strength aluminum
Infusion Rails
1 overhead heavy-duty infusion slide rail with 2 hooks
Safety Handrails
Ergonomic yellow high-visibility safety grab rail on top
Cabin Environment
Ventilation System
1 high-power electric cabin exhaust/ventilation fan
Sterilization System
1 built-in ultraviolet (UV) air disinfection lamp
Partition Assembly
High-polymer partition wall with upper movable sliding window
Floor Assembly
Eco-friendly laminated wood with wear-resistant medical flooring
Floor Properties
Flame-retardant, anti-slip, mildew-resistant, acid/alkali-resistant
Cabinet Assembly
Flat-window medical equipment storage cabinet on rear left side
Auxiliary Seats
1 doctor single seat + 1 two-person long bench with seat belts
Alert & Visuals
Warning Lights
Long row of high-visibility LED warning lights on front roof
Siren System
100W multi-tone electronic siren with handheld control mic
Exterior Markings
Customizable First Aid decals, colors, and logos on request
Medical Waste
1 integrated, easy-to-clean specialized waste bin
Safety Equipment
Fire Safety
Heavy-duty fire extinguisher stored in rear medical cabinet
Professional Patient Care & Medical Systems
Safety, Hygiene & Ergonomic Design
Alert & Sterilization Systems
