I-SUZU 700P 4x4 RHD 190hp Garbage Compactor Truck and 9m³ Compaction Volume

大画像 : I-SUZU 700P 4x4 RHD 190hp Garbage Compactor Truck and 9m³ Compaction Volume

商品の詳細:

起源の場所:	中国
ブランド名:	CLW GROUP
証明:	ISO
モデル番号:	コンパクターゴミ収集車

お支払配送条件:

最小注文数量:	1
価格:	20000
パッケージの詳細:	雨除け生地の包装
受渡し時間:	30日間
供給の能力:	10個/月

連絡先

詳細製品概要

材料:	炭素鋼	ホイールベース:	3815のmm
エンジン型式:	4HK1-TCG61	馬力:	190 hp
ギアボックス:	前進6段+後進1段	車両総重量:	11000のkg
前軸の負荷:	4000KG	後ろ軸の負荷:	7000 kg
タイヤサイズ:	235/75R17.5 16PR	圧縮体積:	9立方メートル
本体材質:	高強度耐磨鋼
ハイライト:	I-SUZU 700P garbage compactor truck , 4x4 RHD garbage truck 190hp , 9m³ compaction volume garbage truck

I-SUZU 700P 4x4 RHD Compactor Garbage Truck 190HP

This I-suzu 700P 4x4 right-hand drive compactor garbage truck is purpose-built for reliable waste collection and compaction in urban, suburban, and rugged environments. Powered by a 190HP I-suzu diesel engine, it delivers robust performance paired with professional compaction capabilities to maximize operational efficiency.

Technical Specifications

Chassis Specifications
Product Name	I-SUZU 4x4 Compactor Garbage Truck (9m³)
Cab	Single row cabin, Right Hand Drive (RHD), with A/C
Wheelbase	3815 mm
Engine Model	4HK1-TCG61
Horsepower	190 HP
Emission Standard	Euro VI
Gearbox	6 forward speeds + 1 reverse
Gross Vehicle Weight	11000 kg
Front/Rear Axle Loading	4000 kg / 7000 kg, with ABS
Tires	235/75R17.5 16PR, 6 units + 1 spare
Drive Type	4x4
Superstructure Specifications
Compaction Volume	9 m³
Compaction Mechanism	Hydraulic scraper + sliding plate system
Control Mode	Wired + wireless remote control
Core Functions	Single cycle / Continuous cycle / Reverse cycle
Body Material	High-strength wear-resistant steel
Tailgate Operation	Hydraulic lifting and lowering, fully sealed
Waste Compaction	High compression ratio to maximize loading capacity
Operation Safety	Emergency stop button, overload protection

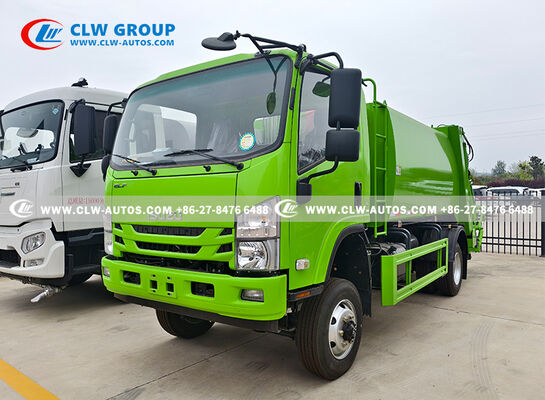

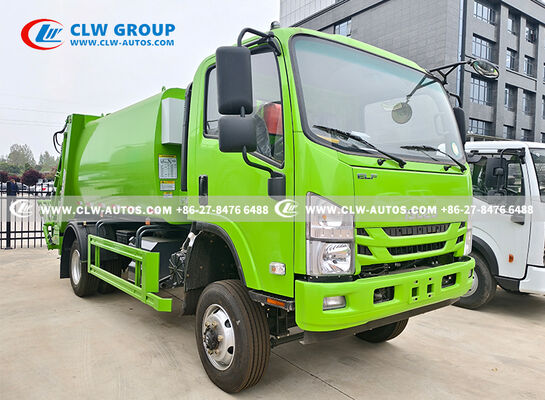

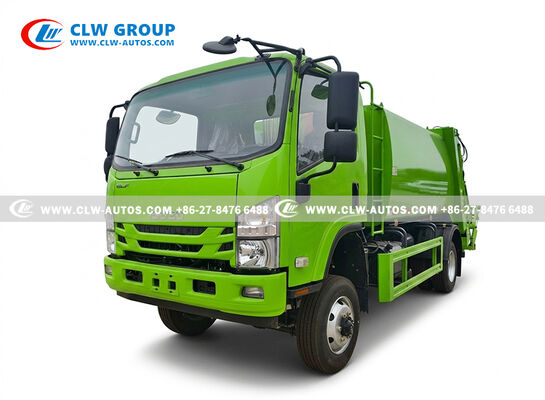

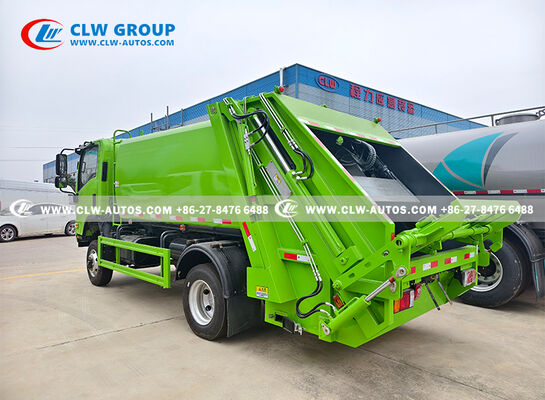

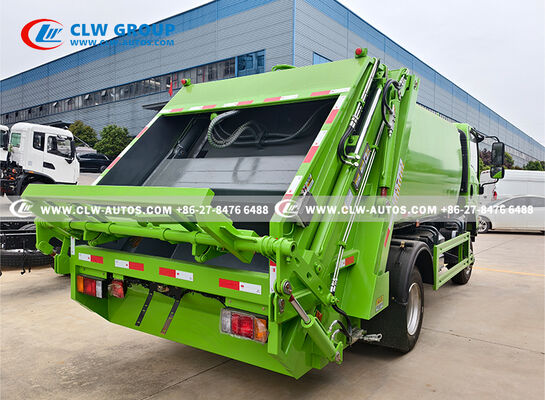

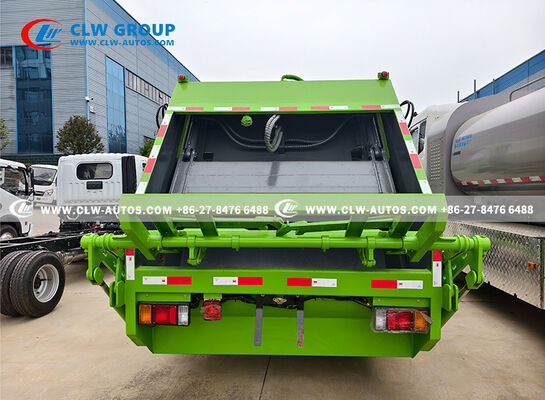

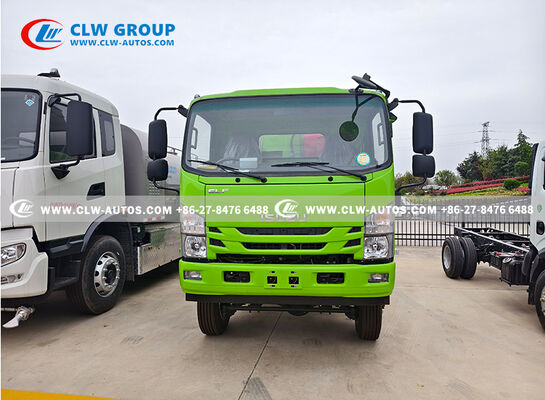

Product Gallery

Key Features

Chassis & Powertrain: Built on the durable I-suzu 700P 4x4 chassis with a 190HP diesel engine, offering excellent traction and power for both on-road and off-road waste collection tasks. The right-hand drive configuration ensures compliance with regional traffic regulations.
Compaction System: Equipped with a high-efficiency hydraulic compaction mechanism (max compression pressure up to 6 tons) that increases waste density, doubling the effective loading capacity compared to standard garbage trucks. Supports single-cycle, continuous-cycle, and reverse-cycle operations via wired and wireless remote control.

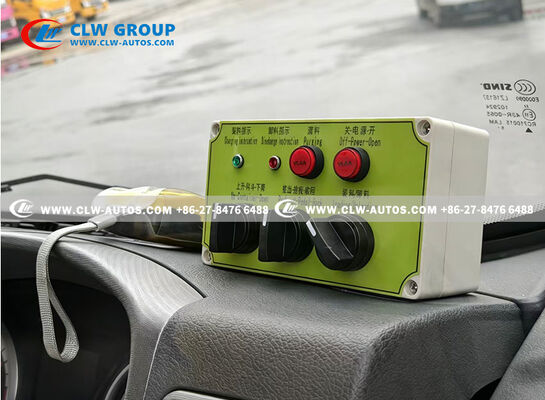

Operation Flexibility: Dual control modes (cab-integrated panel + wireless remote control) enable safe, one-person operation. The system supports functions including tailgate lifting/lowering, scraper opening/closing, and sliding plate up/down movements for versatile workflow management.
Durable Construction: The compactor body is made of high-strength steel with reinforced wear-resistant plates, designed to withstand continuous compression cycles and corrosive waste materials. The sealed body prevents leaks and odors during transport.
User-Friendly Cab: Ergonomically designed driver's cabin with comfortable seating, clear controls, and good visibility, ensuring long-shift comfort for operators.

Applications

Ideal for municipal waste management, residential and commercial waste collection, and sanitation services in regions requiring right-hand drive vehicles. The 4x4 capability also makes it suitable for challenging terrains such as construction sites, rural areas, and mountainous regions.
