Overview

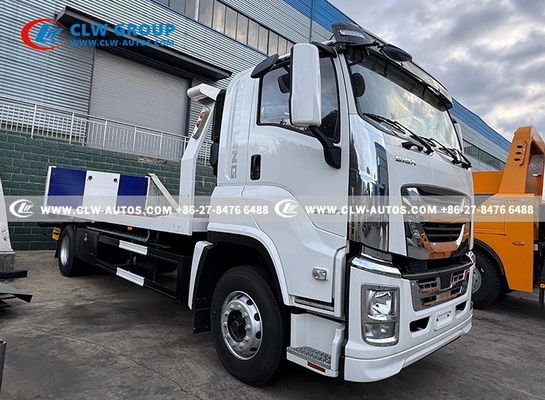

The Isuzu GIGA 4x2 recovery tow truck is engineered with a 5,550mm wheelbase, offering outstanding road stability and smooth handling. This optimized wheelbase design provides excellent maneuverability in narrow streets and challenging terrain—ideal for professional roadside assistance and vehicle recovery tasks.
Powered by the durable and fuel-efficient Isuzu 6HK1 diesel engine, the truck delivers up to 240 HP for strong towing capability. When combined with the reliable 8-speed manual transmission, operators experience responsive acceleration, consistent power output, and superior performance in heavy-duty working environments.
Key Features
Winch Functional Advantages
· Efficient Towing & Pulling: Capable of pulling disabled or damaged vehicles onto the flatbed or moving them to a safe position.
· Accurate Vehicle Positioning: Enables precise maneuvering in tight recovery zones, improving loading alignment and operational safety.
· Enhanced Stability & Self-Recovery: Provides an anchor point for the tow truck on slippery or uneven surfaces, ensuring secure operation.
· Accident Site Support: Helps separate collided vehicles and assists in partially uprighting overturned units for faster clearance.

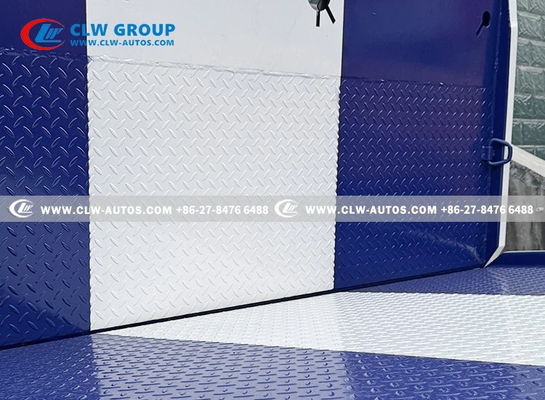

Anti-Slip Recovery Deck Features
· Slip-Resistant & Durable: Textured platform surface increases tire grip and enhances long-term wear resistance during vehicle loading.
· High Structural Strength: Reinforced patterns improve anti-deformation performance under heavy loads.
· Good Drainage & Anti-Corrosion: Efficient water drainage design reduces moisture buildup and minimizes the risk of rust.
· Better Tire Protection: Improves vehicle stability and reduces abnormal tire wear throughout the towing process.
Products Parameters
|
Chassis Specification |
||
| Chassis Model | QL118 | |
| Driving Model | 4x2 | |
| Cab |
|
|
| Dimension | 10000 x 2500 x 3000 mm | |
| Wheelbase | 5550 mm | |
| Gross vehicle Weight | 18000 kg | |
| Front Axle Loading Capacity | 6300 kg | |
| Rear Axle Loading Capacity | 13000 kg | |
| Axle Number | 2 | |
| Engine |
ISUZU diesel engine 6 cylinders in a line, Water cooled, turbocharged, after cooled, cold start. |
|
| Model: 6HK1-TCG61 | ||
| Horse power: 240 HP | ||
| Displacement: 7790 ml | ||
| Emission standard: Euro 6 | ||
| Transmission | Model: FAST Manual Type | |
| 8 Forward & 1 Reverse | ||
| Tire | 295/80R22.5 | |
| 6 Pcs with one spare tire | ||
| Fuel Tank Capacity | 200L | |
| Brakes | Air brake, With ABS | |
| Upper Body Specifications | ||
| Flatbed Platform | Size: 7000 x 2500 mm | |
| Thickness : 6mm checked plate | ||
| Loading Capacity: 15 Ton | ||
| Frame: 16 mm Thick manganese plate | ||
| Winch | 10 Ton | |
| Rear Lifting Arm | 10 Ton | |
| Box Plate | Material: Aluminum Alloy | |
| Hydraulic Back Platform | 2400 x 2500 mm | |
