商品の詳細:
お支払配送条件:
|
| ブランド: | FOTON、いすゞ、東風、HOWO、JAC、JMC、SHACMAN、FAW | 関数: | ゴミ圧縮機、廃棄物除去 |
|---|---|---|---|
| 材料: | 炭素鋼Q235B | 厚さ: | 側面3mm、底面4mm |
| タンクボリューム: | 5cbm/5000リットル/3トン | ホイールベース: | 3308mm |
| 馬力: | 108馬力 | 油圧ポンプ: | 中国の有名なブランド |
| 制御システム: | シーメンスブランドのオペレーティングシステム。 | 保証: | 1年 |
| コントロール: | 手動制御と電気制御の両方 |

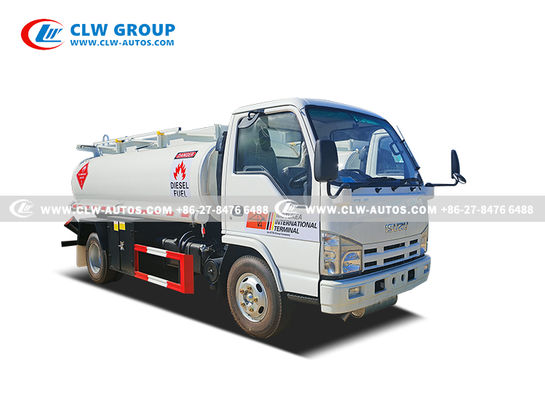

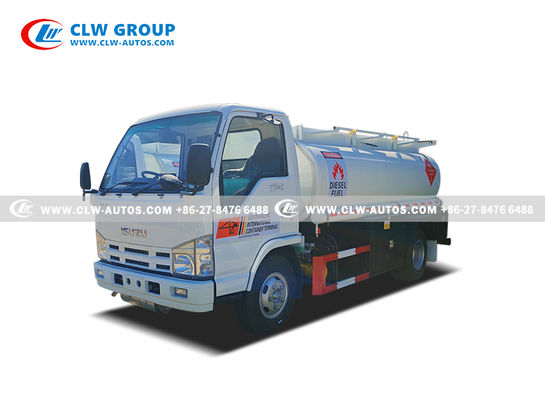

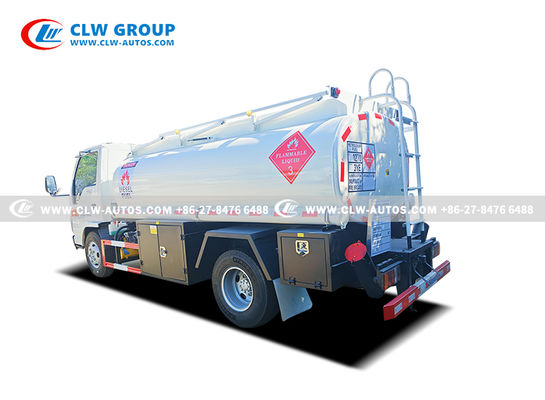

Isuzu 100P 5m³ Diesel Refueling Truck – Mobile Fuel Tanker for Efficient Onsite Fuel Delivery
The Isuzu 100P 5m³ Diesel Refueling Truck is engineered to meet the growing demand for efficient and flexible mobile fuel delivery. Based on Isuzu’s trusted 100P light-duty chassis, this truck offers a combination of power, reliability, and safety suitable for fuel logistics operations in construction, mining, agriculture, and transportation sectors.
Equipped with a 4KH1CN6LB 120HP diesel engine, the vehicle delivers stable power output with reduced fuel consumption and meets China VI emission standards. It features ABS braking, 7.00R16 durable tires, and reinforced front and rear axles to provide exceptional load-bearing capacity and driving stability under various working conditions.
The 5,000-liter fuel tank is built with internal anti-surge baffles, ensuring stability during transport, while anti-corrosion materials extend service life. Standard safety components such as a grounding strap and fire extinguisher further enhance protection during fuel delivery. Optional configurations—like an electric fuel pump, hose reel, fuel meter, and automatic shut-off system—enable precise and convenient refueling for different applications.
This model supports right-hand drive configuration, making it ideal for markets in Southeast Asia, Africa, and Oceania where left-hand traffic is common. With its ergonomic cabin design and user-friendly controls, it provides both driver comfort and operational efficiency for long working hours.
1. Dependable Isuzu Performance
Built on the Isuzu 100P chassis, known for its durability and fuel efficiency, ensuring consistent operation in demanding conditions.
2. Strong and Economical Engine
Powered by the Isuzu 4KH1CN6LB 120HP engine that offers balanced performance, low fuel consumption, and long engine life.
3. Comprehensive Safety System
Includes ABS braking for stability, high-strength axles for better load handling, and a baffle-equipped fuel tank to reduce liquid movement and improve safety.
4. Right-Hand Drive Flexibility
Perfectly suited for left-hand traffic markets such as Malaysia, Singapore, and Australia, supporting global adaptability.
5. Comfortable Driving Experience
Features an ergonomic single-row cabin with air conditioning, power windows, central locking, and a multifunction LCD display to enhance driver comfort and visibility.
6. Customizable Refueling System
Optional accessories such as an electric pump, hose reel, or fuel meter make it versatile for various mobile fueling operations—from construction machinery to fleet refueling.
7. Multi-Industry Applications
Ideal for mobile fuel distribution, mining and construction refueling, agricultural machinery supply, emergency fuel delivery, and island or remote area fuel transport.
Product Specifications
| Chassis Technical parameter | ||
| Driving mode | ISUZU 100P 4X2 | |
| Dimension | 6800*2400*3000mm | |
| Gross weight | 8000kg | |
| Curb weight | 3500kg | |
| Payload | 4500kg | |
| Wheelbase | 3360/3815mm | |
| Cabin | Steering wheel | Left hand drive or right hand drive |
| Configuration | With air conditioning | |
| Steering power | ||
| Central locking | ||
| Electric door and window | ||
| Engine | Engine brand | ISUZU 4KH1CN6LB |
| Horsepower | 120HP | |
| Displacement | 2300ml | |
| Emission standard | Diesel, EuroⅥ | |
| Type | 4 stroke, 4-cylinders in line, water cooling | |
| Transmission | ISUZU 5 forward gears and 1 reverse , Manual | |
| Tire | 7.00R16 | |
| Front axle loading | 2000-2500kg | |
| Rear axle loading | 4000-4800kg | |
| Upper structure parameter | ||
| Fuel tank capacity | 5m3/5,000liters | |
| Tank material | Carbon steel/ Stainless carbon/ Aluminum alloy | |
| Compartment No. | ONE | |
| Fuel dispenser | 2 sets, flow rate at 70L/min | |
| English operation panel | ||
| Showing unit price/ filling volume/ total price | ||
| Oil pump | 2 Nos of 2.5'' Oil pumps, driven by TPO | |
| Independent pump in and pump out for each compartment | ||
| Filling hose | 1 inch and 15 meters | |
| 2 sets for diesel and petrol separately | ||
| Filling hose reel | 2 Nos | |
| Filling nozzle | 2 Nos | |
| Manhole cover | 2 sets with breath valves | |
| Bottom valve | 2 sets of APL aluminum pneumatic bottom valves | |
| Level gauge | Each tank top is equipped with an electronic level meter | |
| Operation compartment | Located at rear of truck with aluminum alloy door | |
| Control system | Power on/off | |
| Lighting | ||
| Fuel pump on/off | ||
| Fuel dispenser on/off | ||
| Main valve on/off | ||
| Fuel level digital display | ||
| Others | 2 sets of 4kg extinguishers | |
| 1 set of static belt | ||
| Painting | Color and design as customer's requirement | |
| Special design | Tank body is covered by carbon steel van | |
Detail photos
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
